Large Diameter 6-8 Inch Water Suction Discharge Rubber Hose with Flange Wear Resistance Flexible Customizable Cutting Service

Product name：Dredging Hose
Material:Synthetic Rubber with steel wire
Diameter:152mm-1300mm
Working pressure:0.4MPa to 2.5MPa
Working temperature:-20 to 40 degree
Advantages:Wear resistance
Feature:Corrosion resistance
Application:Mining Sand other flow with solids
Connection:Flange
Keywords:Rubber hose

分类： ,

一、Product Description

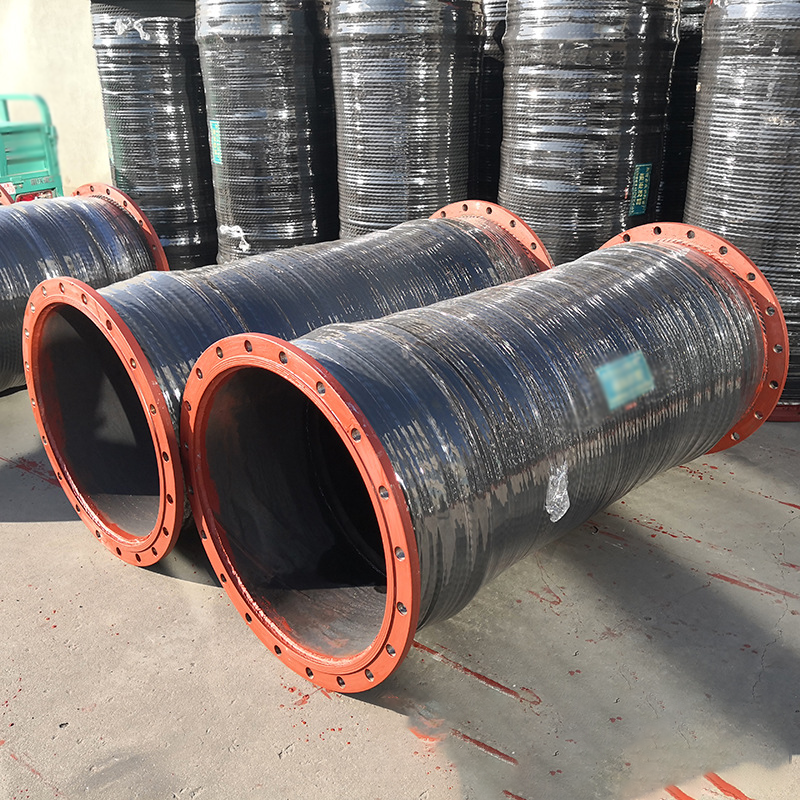

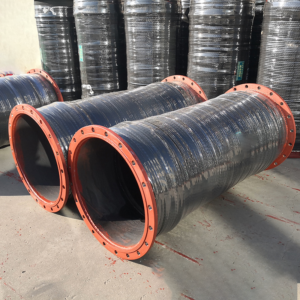

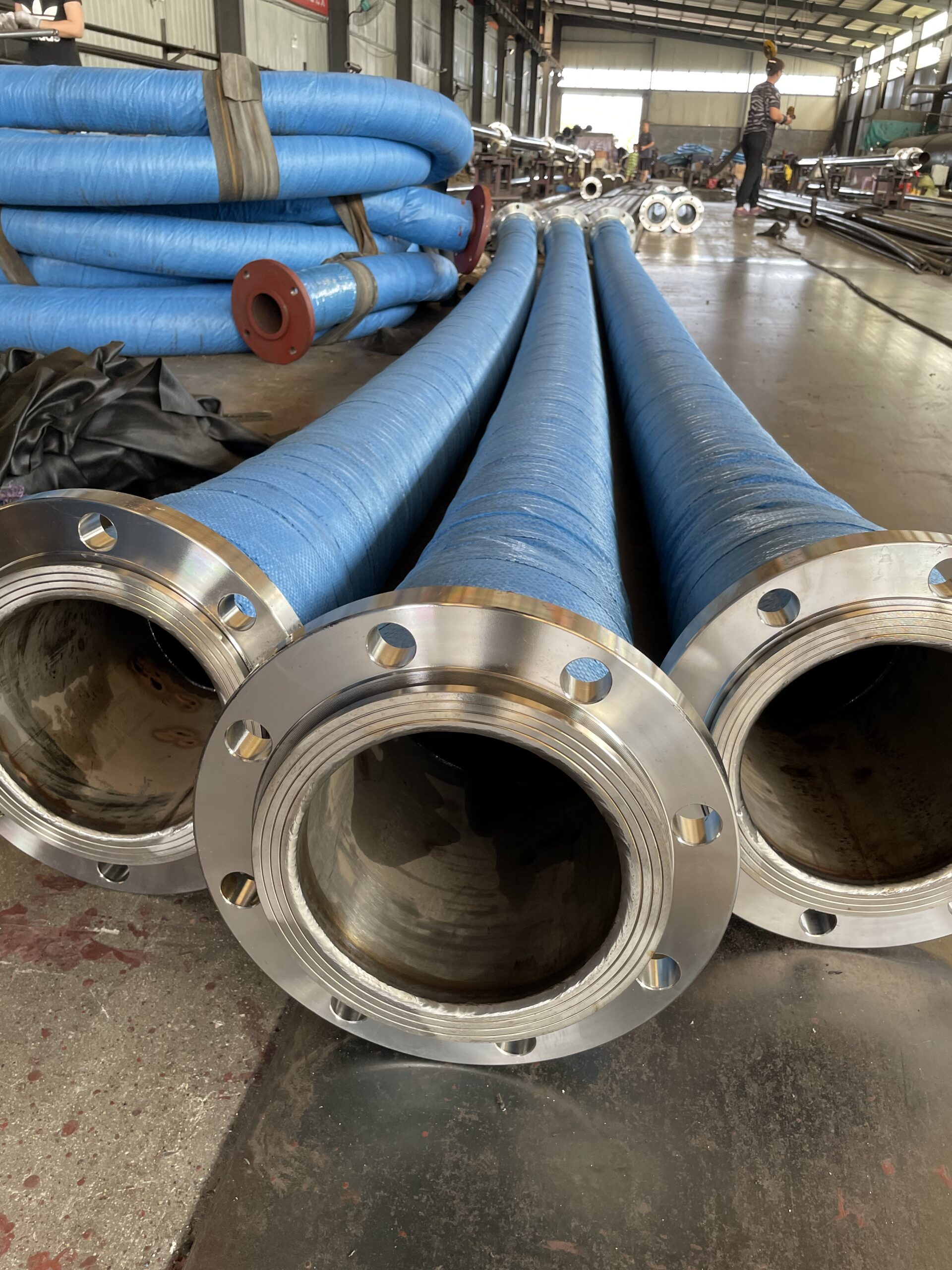

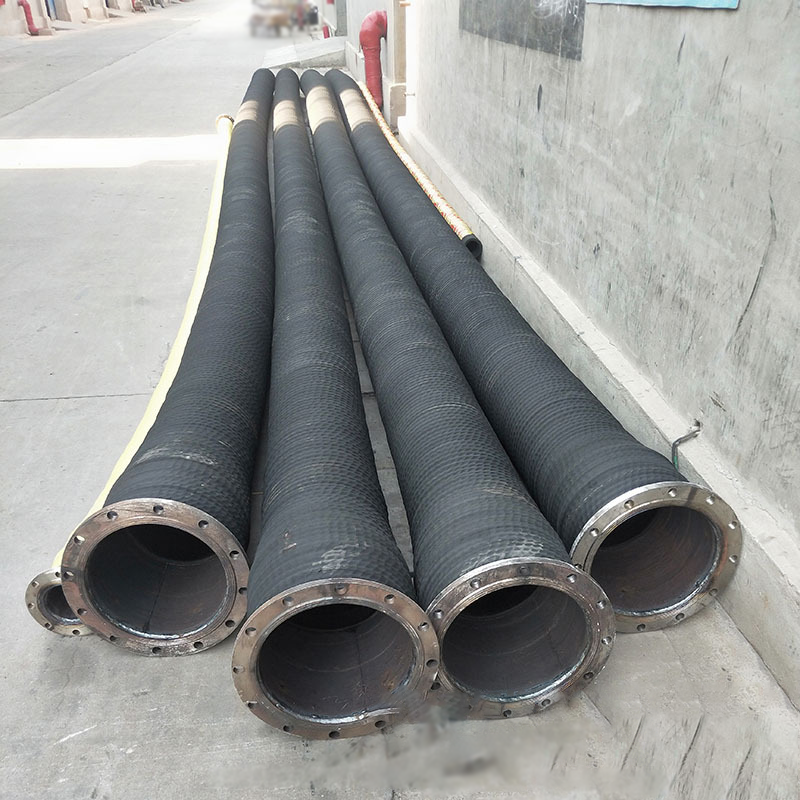

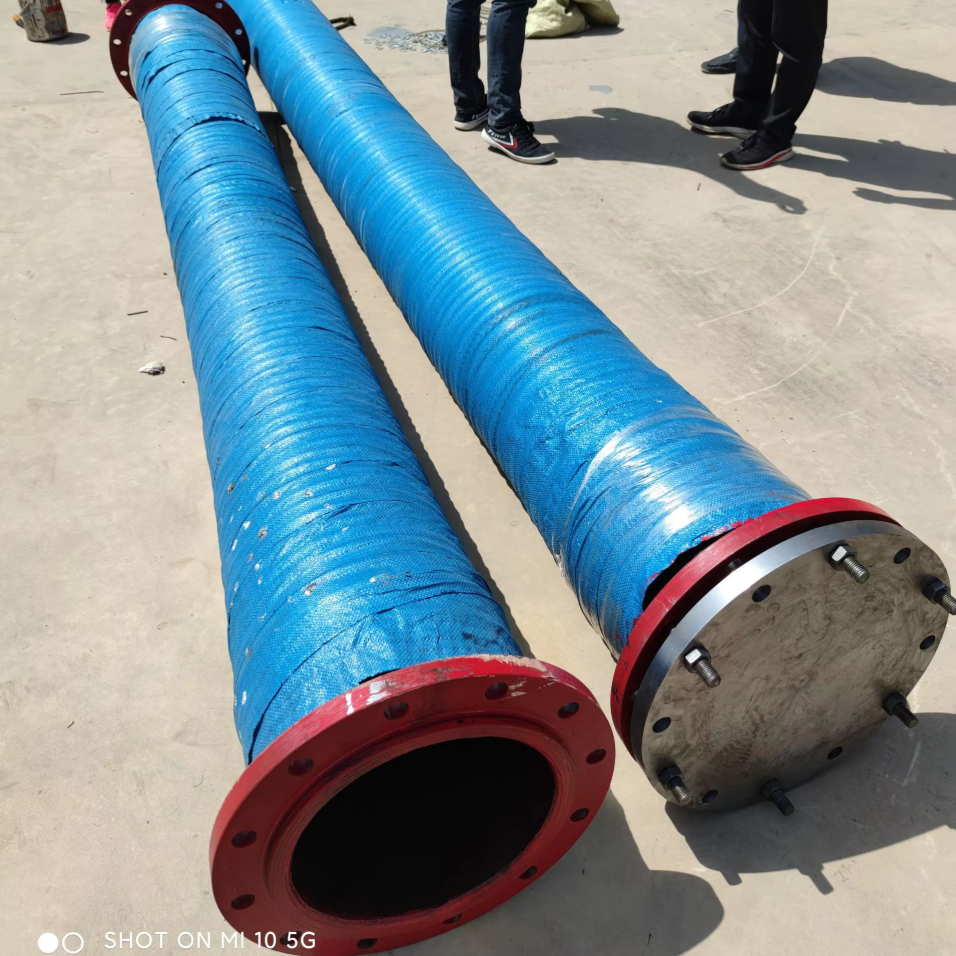

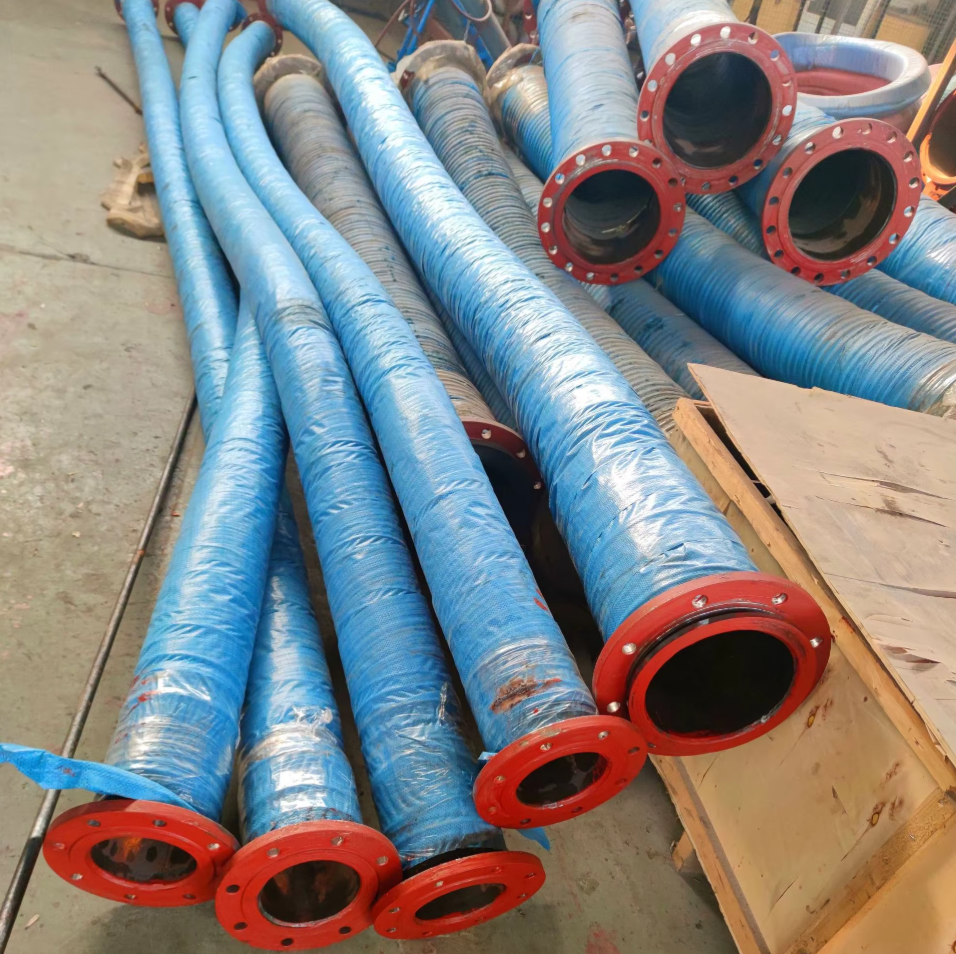

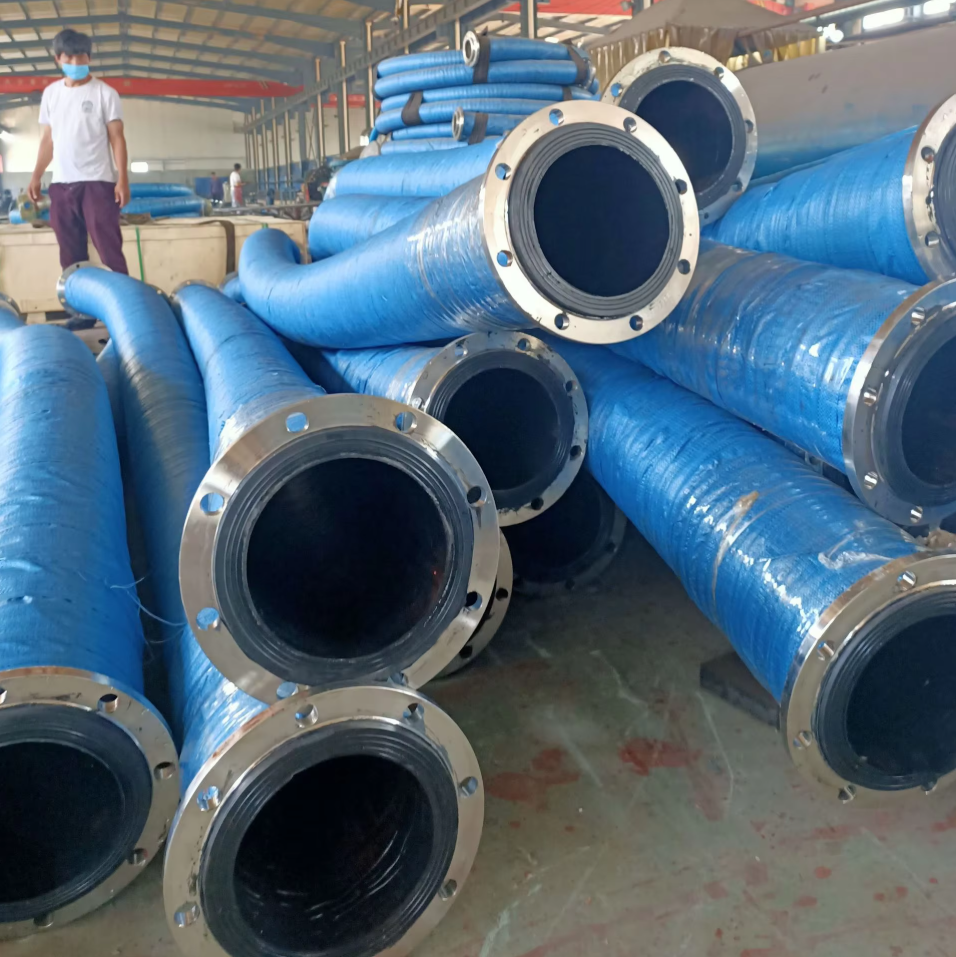

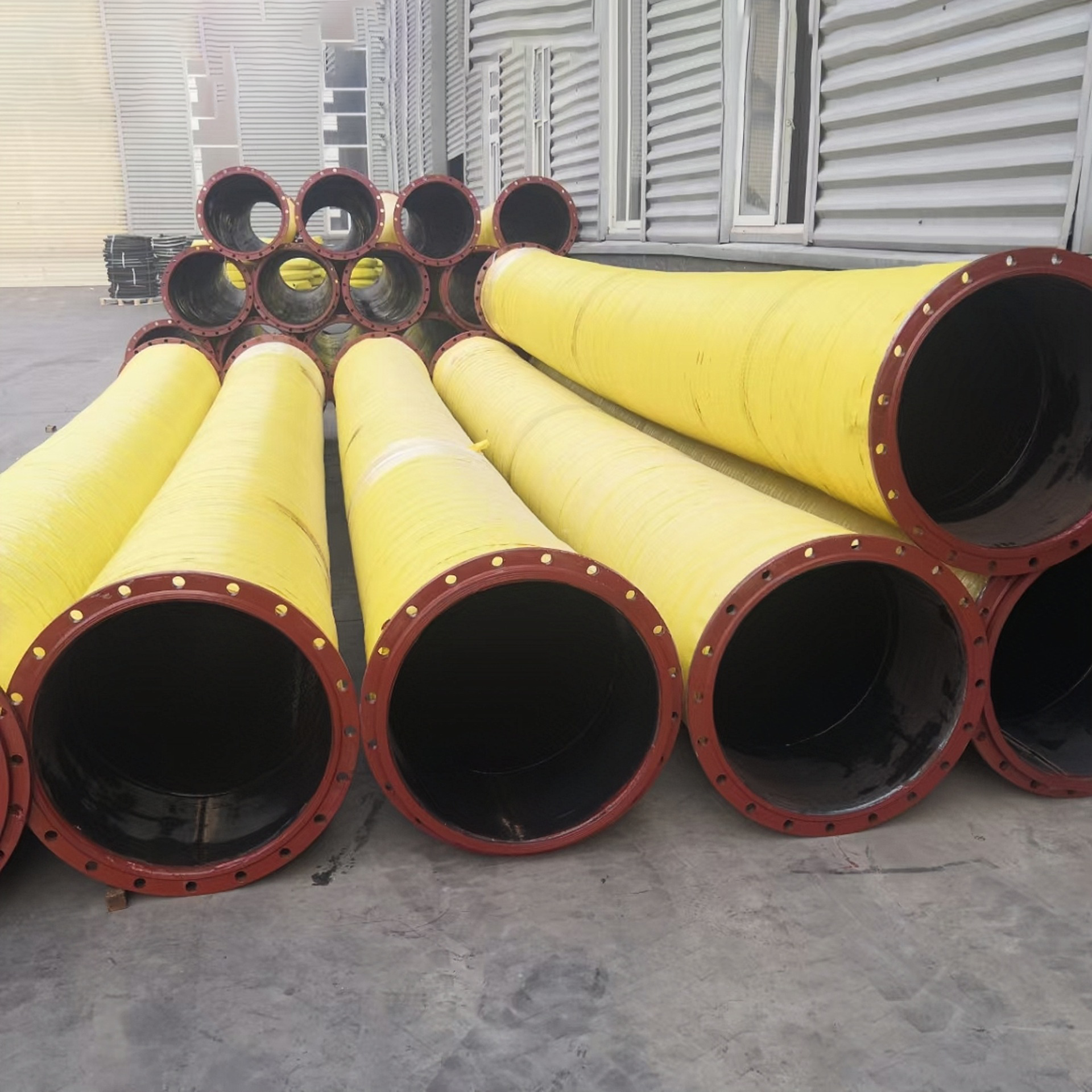

Wear resistance flexible large diameter water suction and discharge rubber hose with flange

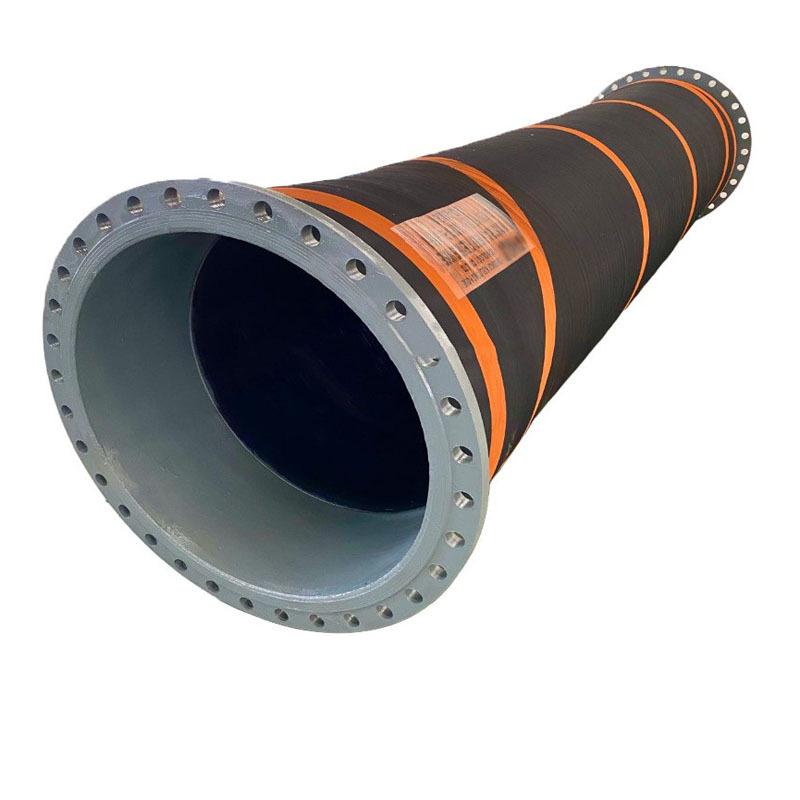

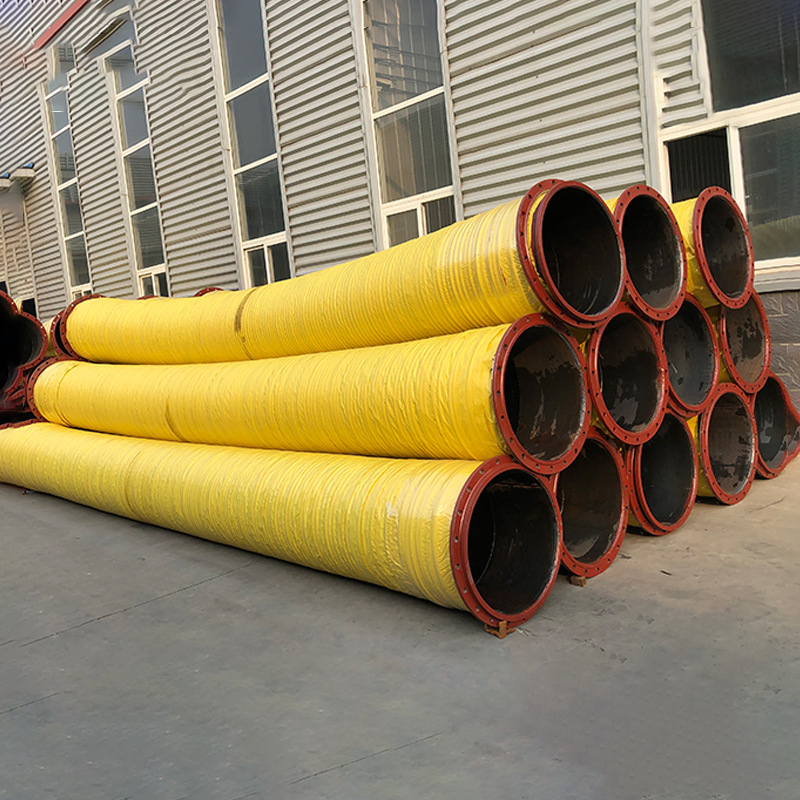

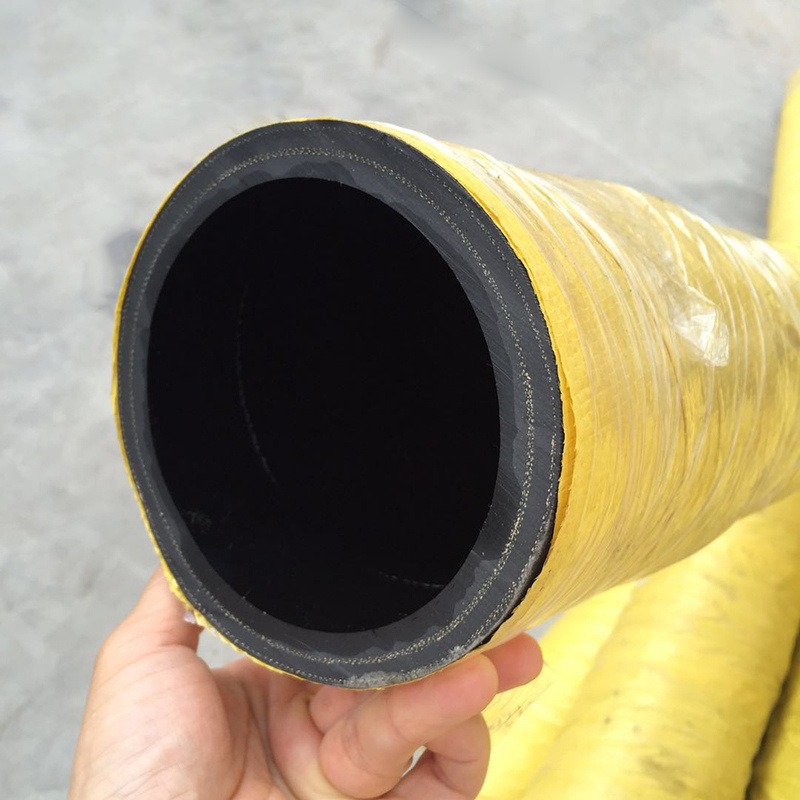

Flange rubber hose is consist of two flange and one rubber hose, the rubber hose is consist of inner rubber layer, cord fabric layer, middle rubber layer, steel wire reinforcement layer, middle rubber layer, cord fabric layer, outer rubber layer. It is mainly used for pump irrigation rive water, sand mud dredging, water sunction etc.
Tube
NR, BR, SBR
Reinforcement
High tensile strength fabrics
Cover
NR, CR
Working Temperature
-20℃ to 80℃
Safety Factor
3:1



Application
Used for port, dock, discharge sea water, silt, sand, flood, etc. Particularly suited to the work of dredging construction for dock and port, Building Project and so on.The suction hose has good stiffness,can not be abnormal abrasion,the arch and eddy of some part place of inner rubber that is formed by the bend of the storm and tide.



Advantages
High Abrasion Resistance
Light Weight
Oil and Heat Resistant
Flexible,easy to bending
I.D.
W.P.
B.P.
Length
Pipe Wall Thickness
mm
tolerance/mm
bar
bar
m
mm
300
±2
4~12
36
1~3
34~37
450
±2
4~12
36
1~3
35~37
560
±3
4~12
36
2~3
40~45
600
±3
4~12
36
2~3
40~45
700
±3
8~15
45
2~3
40~45
800
±4
12~25
55
2~3
50~52
900
±4
15~25
75
2~3
55~58
1000
±5
20~25
75
3~5
75
1100
±5
25~30
80
3~5
90
NOTE: Other parameters are by your requirements.
Application Areas：
1. Port and waterway engineering

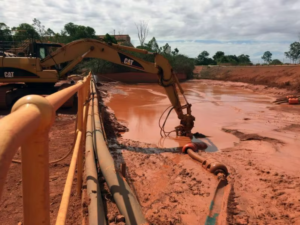

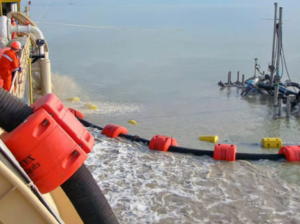

① Port construction and maintenance When a new port is built, the harbor and waterway need to be dredged to reach the designed water depth. Large-diameter dredging pipes can efficiently transport the excavated silt. For example, in the construction of large container ports, it is necessary to dig a deep enough channel for large ships to enter and exit safely. The dredging ship sucks out the silt and other debris on the seabed through a large-diameter dredging pipe and transports it to the designated filling area, creating good basic conditions for the construction of port terminals.

During the use of the port, due to the siltation, regular maintenance and dredging are required. Large-diameter dredging pipes can quickly clean up the silt deposited at the bottom of the channel and harbor to ensure the normal operation of the port. In estuary ports such as the Yangtze River Estuary, due to factors such as river silt input and ocean power, silt deposition is more serious. Large-diameter dredging pipes play a key role in keeping the waterway unobstructed. Wide and deepen the waterway With the development of the shipping industry, the trend of large-scale ships is obvious. In order to meet the navigation needs of large ships, it is necessary to widen and deepen the existing waterways. Large-diameter dredging pipes can transport a large amount of dredged materials and play an important role in waterway dredging projects. For example, in the widening project of the Panama Canal, large-diameter dredging pipes were used to transport rocks, soil and other materials excavated from the bottom of the canal, ensuring that the canal can accommodate larger tonnage ships and improving the efficiency of global shipping.
2. Water Conservancy Project
① River Management Many rivers have siltation problems, which leads to the elevation of the riverbed and affects the flood discharge capacity. Large-diameter dredging pipes can be used to remove riverbed silt and increase the water-passing section of the river. For example, in the management of sediment-rich rivers such as the Yellow River, dredging pipes are used to transport riverbed silt to the embankment reinforcement areas on both sides of the river, which not only reduces the riverbed height, but also enhances the stability of the embankment, playing a role in flood prevention and disaster reduction. At the same time, in projects such as river straightening, large-diameter dredging pipes are also used to transport excavated earthwork, making the river channel smoother, reducing water flow resistance, and facilitating the rapid discharge of floods.


② Reservoir dredging During the long-term operation of the reservoir, a large amount of silt will accumulate at the bottom of the reservoir, reducing the effective storage capacity of the reservoir. Large-diameter dredging pipes can transport silt from the bottom of the reservoir to designated locations outside the reservoir. For example, in some small reservoirs in mountainous areas, silt is removed through dredging pipes to restore the water storage function of the reservoir and ensure the supply of agricultural irrigation and domestic water.
3.. Sea reclamation project
① Land reclamation In coastal areas, large-diameter dredging pipes are used to blow and fill silt and other materials on the seabed into shallows or bays, gradually forming land. In the construction of coastal economic development zones in my country, the land for many industrial parks, airports and other infrastructure is obtained through sea reclamation. Large-diameter dredging pipes transport a large amount of silt excavated from the seabed to the reclamation area over long distances, providing land resources for urban development and industrial layout. For example, during the construction of Tianjin Binhai New Area, dredging
pipes were used for land reclamation, creating vast space for port, industrial and urban construction.

二、Packing & Delivery

There are mainly the following modes of foreign trade transportation:
1. Ocean transportation: large volume, low freight, but slow speed, suitable for bulk cargo transportation. Large machinery and equipment, large amounts of raw materials, etc. are often transported by sea.
2. Air transportation: fast speed, high safety, but expensive freight, small volume, suitable for transporting urgently needed materials, high-value goods, such as electronic products, precision instruments, etc.
3. Railway transportation: large transportation capacity, fast speed, less affected by climate, suitable for cargo transportation between inland countries and neighboring countries, such as various commodities transported by China-Europe Express.
4. Road transportation: flexible and mobile, can achieve door-to-door transportation, but the volume is small, suitable for short-distance transportation or as a connection with other modes of transportation.

三、Company Profile

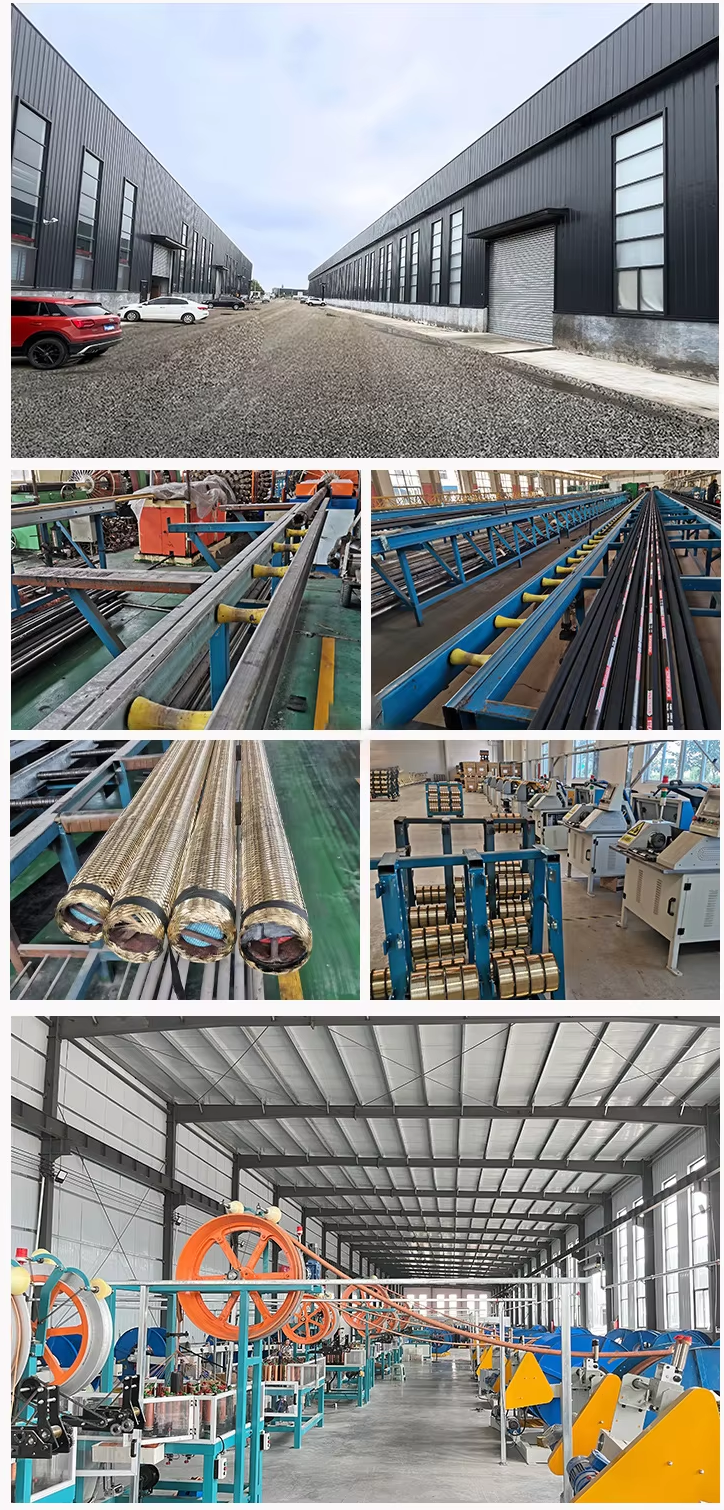

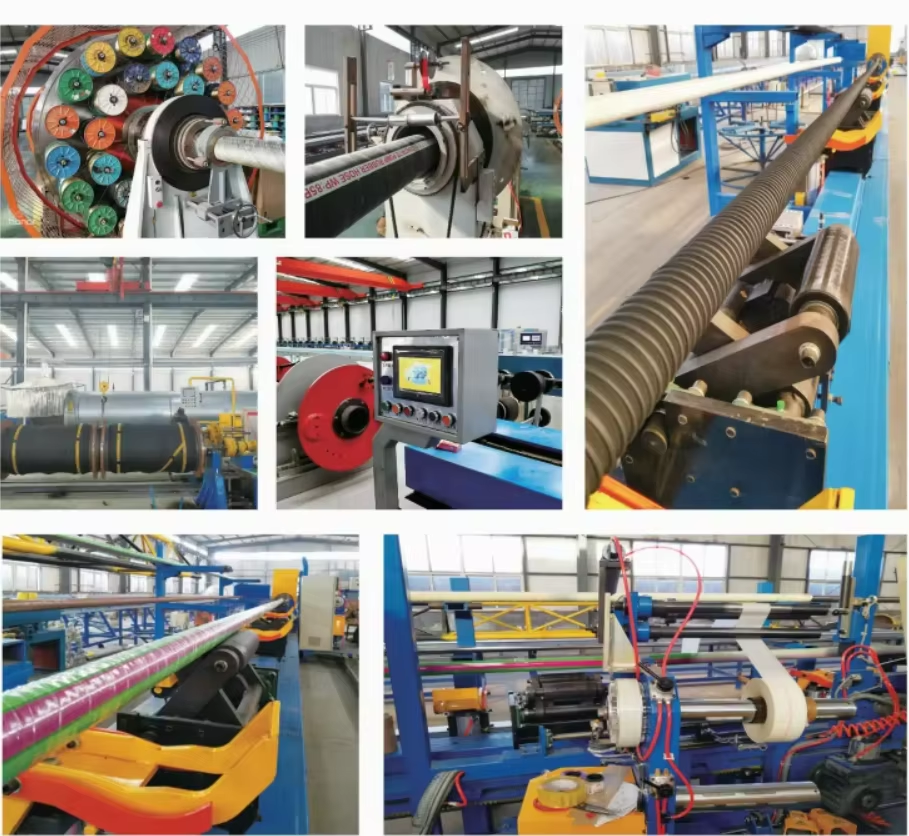

Since its establishment in 2012, Jinghuan Rubber & Plastic has been deeply engaged in the research and development and manufacturing of rubber and plastic products for thirteen years. Relying on the modern enterprise management system and the layout of the entire industrial chain, it has built an intelligent manufacturing industry ecosystem integrating research and development, production, testing and sales. The company’s core product lines cover four categories: hydraulic crimping equipment, large-diameter rubber hoses, smooth low-pressure oil-resistant hoses and PVC hoses, which are widely used in engineering machinery, petrochemicals, municipal engineering and other fields. Its independently developed high-precision crimping equipment and special rubber composite material technology have broken through many technical barriers in the industry.

“If you have any questions or need further information, please feel free to contact me at any time. I’m always here for you.”



Product name

Dredging Hose
Material

Synthetic Rubber with steel wire
Diameter

152mm-1300mm
Working pressure

0.4MPa to 2.5MPa
Working temperature

-20 to 40 degree
Advantages

Wear resistance
Feature

Corrosion resistance
Application

Mining Sand other flow with solids
Connection

Flange
Keywords

Rubber hose
